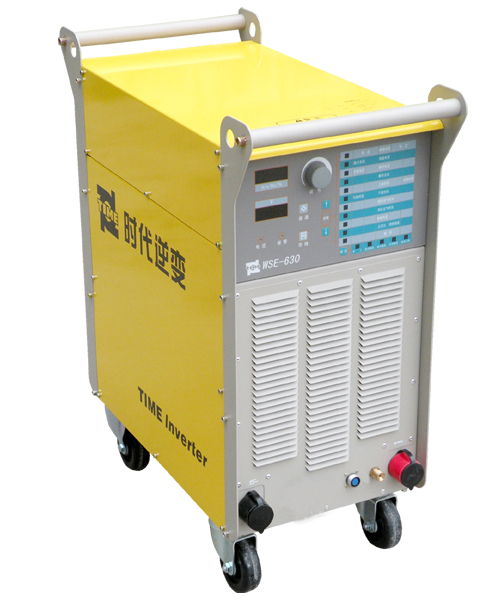

WSE-630(PNE30-630ADP)

Feature code：

Main characteristics:

●IGBT inverter technology
●Microcomputer control technology
●Welding parameter automatically stores
●Five operating mode for AC Square wave TIG welding
●Parameters in panel are set by coordinate-type touch key and the single knob for adjustment
●Eight operating mode both for DC TIG, DC pulse TIG
●AC Square Wave TIG / Pulse TIG / DC TIG / Spot TIG/MMA in this machine
●Mainly be used for welding of aluminum, magnesium aluminum alloy and its alloys in the field of aviation,
●aerospace, air separation equipment, radiator, aluminum pipe, bicycle, pressure vessel, furniture industry and so on
●Current output with Quasi sinusoidal waveform;
●Welding cable can be lengthened to 60 meters (automatically alarm when the cable wings on welding mode);
●Double welding function is optional;
●Foot switch is optional;
●Current displays effective value in AC TIG mode;
●Interface for the alarm function of water shortage

Model	WSE-630
Company type	PNE30-630ADP
Rated input voltage(V)	3 phase 380V±(15~20)% 50~60Hz
Rated Input capacity (KW)	25.2
No-load voltage (V)	83±6%
Output current adjusting range(A)	20～630
Pulse frequency (Hz)	0.5～200
Pulse ratio range	10%～90%
Slope up time (s)	0～10
Slope down time (s)	0～10
Spot time (s)	0.2～5
Pre-flow time (s)	0.1～1.5
Post-flow time (s)	1～15
Surge current range(MMA)	0.01～0.5
AC frequency (Hz)	20～70
AC balance	10%～50%
Duty cycle (40℃)	60%
Efficiency	≥85%
Power factor	0.93
Insulation grade	F
Case protection grade	IP21S
Cooling	Wind
Dimensions (mm)	700×360×780
Net weight (kg)	72
